Home » Semi Automatic Cup Filler Machine

Semi Automatic Cup Filler Machine

V Pac

This packaging equipment is designed for small pack sizes (2 gms onwards).In this packing machine, the free flowing small granular solid & non sticky powder material is dispensed through the cups. A disc containing 4 or 6 cups is employed for dispensing of material. As the dispensing is done through the cups, it is called as volumetric dispensing system. The telescopic height adjustment system provided in this packaging equipment helps to adjust the volume of the cup with ease. Being semi automatic packing equipment, a ready pouch is to be kept below the dispensing chute to collect the material. The filled pouch is then to be sealed using any standard sealing equipment such as hand sealer, continuous band sealer, foot sealer etc.

Technical Specifications
Parameter Specification
Pack Range 2 gm to 1000 gm
Weight Control Volumetric - No actual weight is measured
Volume Control Cup height adjustment via telescopic method
No of Cups 2/4/6 depending upon speed & pack size required
Power supply 230 V Ac, single phase
Power consumption 800 VA
Material of construction Contact parts in SS 304, other frame etc - M.S.( powder coated)
Machine dimensions – H x W x D ( mm) 1500 x 900 x 900 - typical

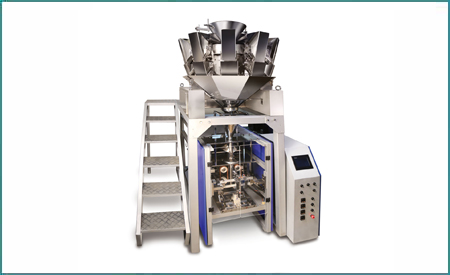

Multi Head Weigher

We proudly call it "INTEGO"

INTEGO the first "Made in India" multi head weigher incorporates the entire electrical, electronic, micro-controller system & the software designed & developed by our own R & D team and manufactured in our state-of-the art manufacturing facility. This ensures international quality standards and allows us to provide prompt after-sales-service, quick supply of spares and flexibility in design to adopt changes as per customer requirement.

Technical Specifications
Material Granular/Fluffy/Irregular shaped, Solids
Max Capacity 10-800 gms
Accuracy 0.1 – 1.5 gms
Max Speed 55 Pouches Per Minute *
Pouch Width 50-330 mm
Pouch Length 65-400 mm
Film Width 120-650 mm
Power requirement 2KW, Single Phase 230 VAC
Material Construction All contact parts SS304 & other parts
Air requirement 2 HP, 8 Bar pressure
* depending upon product.

Further we have, in a bid to serve the industry, decided to provide retrofit services. This will help the multi head weighers which are under break down, to swing back into the action. We are open to supply multi head weigher system to OEMs to fit the same on their own VFFS machines.

Optional Accessories for FFS M/C
  • Nitrogen gas flushing unit
  • Hole punching unit
  • TTO for batch / date printing
  • Gusseting unit
  • Fast change of film roll unit
